EXCELENTE CONTADOR DE FRECUENCIA DE AMPLIO RANGO 1O HZ A 2.6 GHZ
EL EQUIPO QUE NO PUEDE FALTAR EN SU LABORATORIO DE ELECTRONICA
Ideal para medir frecuencias de osciladores, audio , cristales ,radiotelefonos ,emisoras etc
|

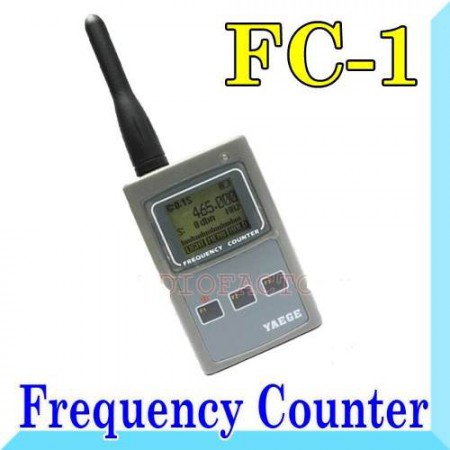

Professional Frequency Counter YAEGE FC-1 for Two-Way Radio
|
Description |
|
¿ YAEGE series hand-held frequency counter is a super compact frequency measuring instrument. It is easy to operate, reliable in quality and small in size. ¿ Multi-Functional LCD Display ¿ 9-Digit Display ¿ Analog bar and Digit Signal Strength Indicator ¿ Display Holding ¿ 50 Display Readings Saving ¿ Power Indicator ¿ Interactive User Menu ¿ Equipped with UV antenna and USB power adapter
|
Features |
|
¿ Frequency Counter for two-way radio; ¿ Frequency Range (2 ranges): 50MHz - 2.6GHz, 50 ohm and 10Hz - 100MHz, 1 Meg ohm ¿ Amplifier : 50 ohm ¿ Impedance: 1 Meg ohm , 50ohm , VSWR<2:1 ¿ Features : RF signal strength ( 50MHz-2.6GHz ) , Screen Holding, Save , View , Battery Indicator ¿ Sensitivity : <5mV@100MHz , <5mV@400MHz , <15mV@1GHz ¿ Gate : 0.1ms , 0.1s , 1s ¿ Time Base : <+/-5ppm ¿ LSD : 1Hz/1s ( 10Hz-100MHz ) , 100Hz/1s ( 50MHz-2.6MHz ) ¿ 3 buttons control ¿ Auto switch off ¿ Auto backlight ¿ Battery : 3 X AAA Ni-MH ¿ Power : 5VDC 1A ¿ Cabinet : ABS ¿ Size : 85mm (H) x 55mm (D) x 24mm (W) ¿ ANT : (UHF) ¿ Color: Grey ¿ Net Weight: 112g |
|
Package |
|
¿ YAEGE FC-1 Frequency Counter ( Ni-MH Battery ) ¿ 3x AAA Built-in Ni-MH Rechargeable batteries ¿ Antenna ¿ AC Power adaptor (110~240V) ¿ English Manual |
